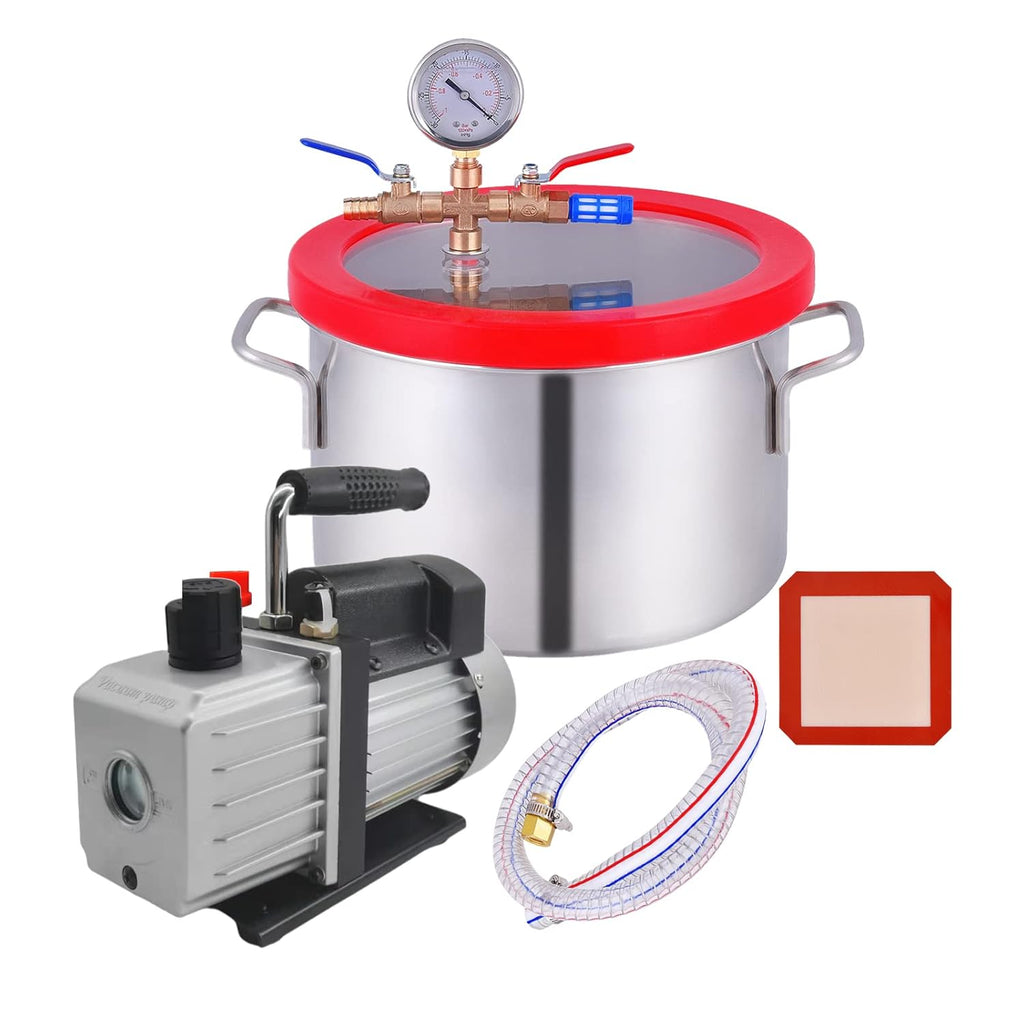

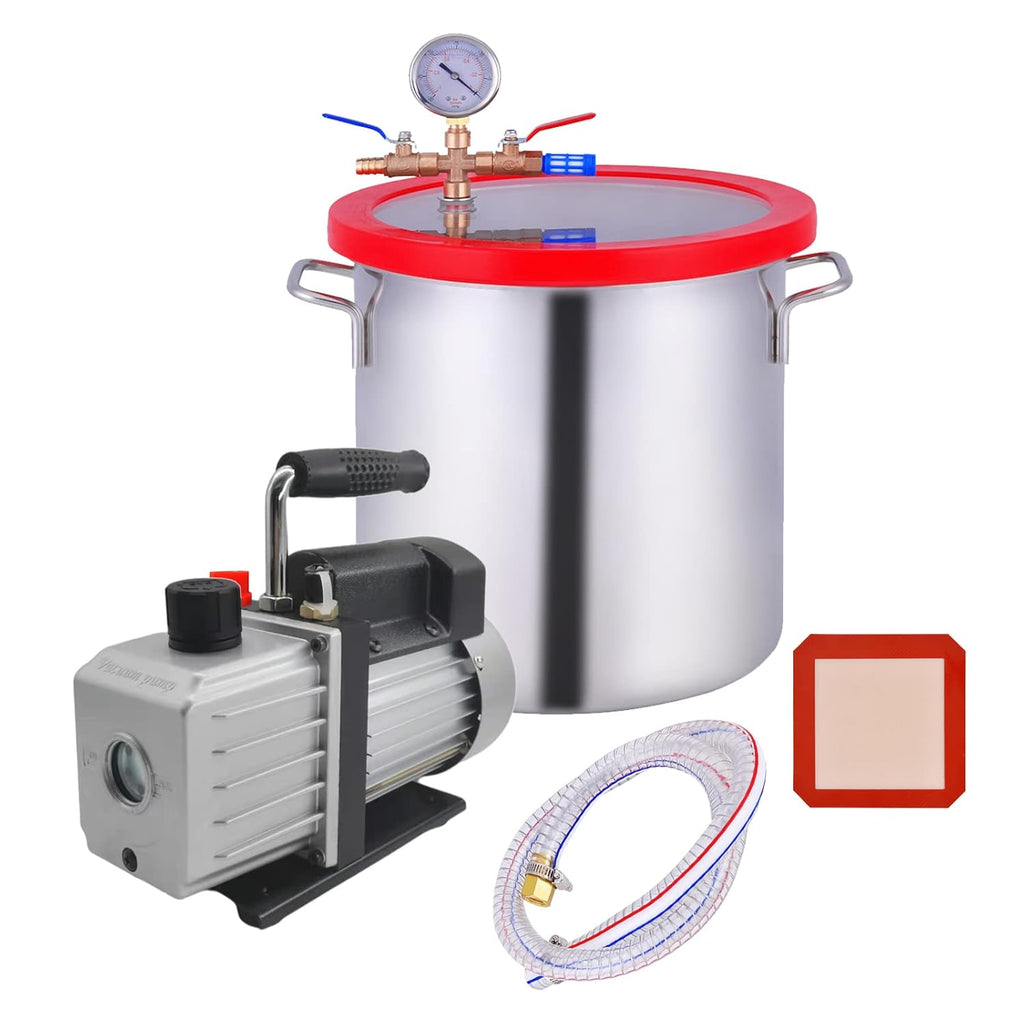

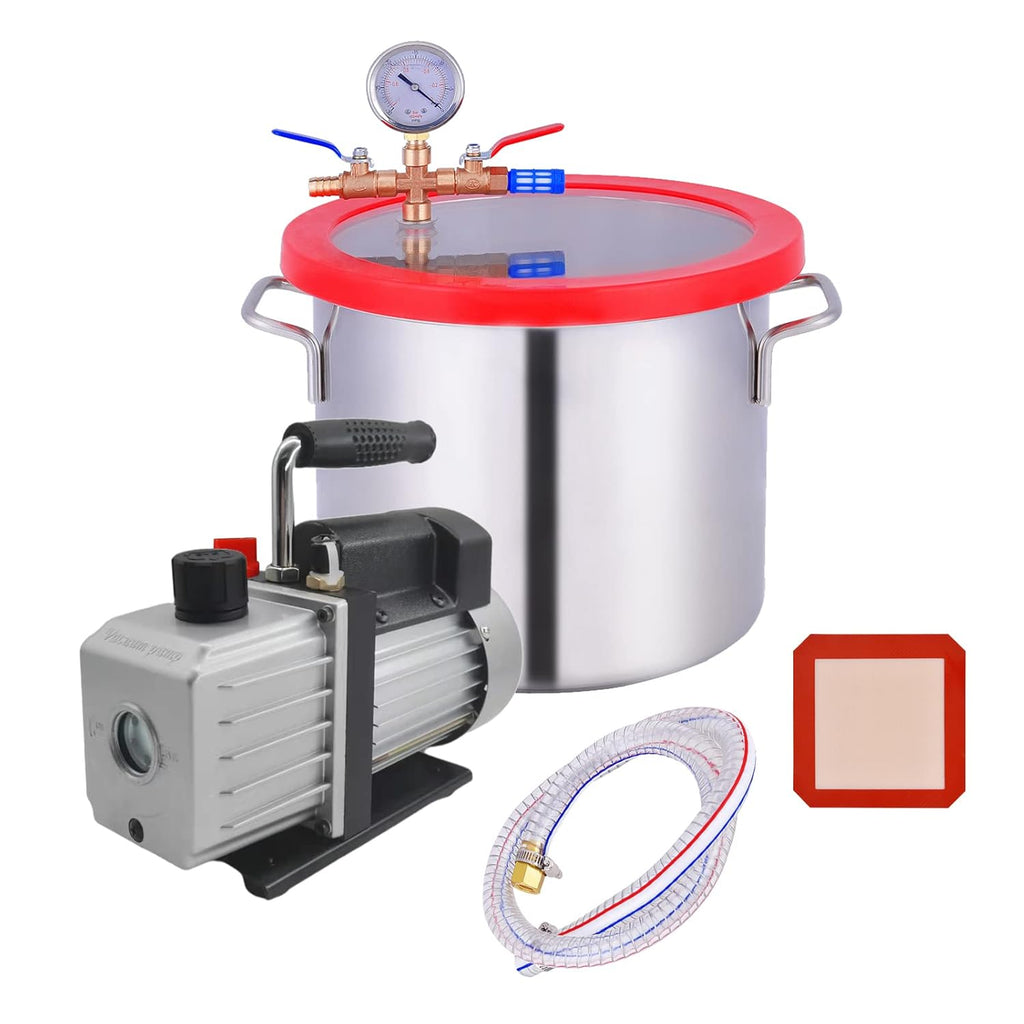

2 Gallon Stainless Steel Vacuum Chamber with 5 CFM Single Stage Vacuum Pump V8585
Sale price
$33.95
Regular price $106.23
Skip to product information
➤ Reinforced Vacuum Chamber: The vacuum chamber is constructed of 304 stainless steel for excellent pressure resistance, corrosion resistance, and heat resistance up to 248°F; clear tempered glass cover avoids shattering caused by corrosion and is convenient at every stage of the degassing process monitor.➤ High Efficiency Vacuum Pump: The 5CFM 1/3HP single stage vacuum pump is powered by an all copper direct drive motor and can withstand temperatures up to 160ºF. With its 1/4" port and included adapter, a vacuum chamber can be easily connected, the pressure can be reduced to 5 PA, and it can even be used as an automotive HVAC inspection tool.➤ Easy Monitoring and Cooling: The single-stage vacuum pump is equipped with an oil level sight glass to easily monitor the oil level and avoid oil shortages. The intelligent cooling system can continuously dissipate heat for the vacuum pump, and the built-in thermal protection function can effectively prevent the machine from burning. And the non-slip rubber shock absorption and shock resistance can prolong the life of the machine.➤ Good Sealing: A high-density silicone gasket is used at the connection between the vacuum chamber and the glass cover plate, which has good sealing performance. After working, it can ensure that the vacuum chamber is in a vacuum state for a long time.➤ Wide Range of Applications: The unit is equipped with 1 5CFM vacuum pump and 1 2gallon vacuum chamber, the vacuum pump has an ergonomic handle for excellent comfort and portability. Vacuum chamber kits are suitable for home air conditioners, automotive AC system testing, industry, etc. In addition, it plays a vital role in the fields of silica gel, epoxy resin, essential oil, polyurethane, compound and other fields that need defoaming.
2 Gallon Stainless Steel Vacuum Chamber with 5 CFM Single Stage Vacuum Pump V8585
Sale price
$33.95
Regular price $106.23
Shipping calculated at checkout.
| 3 CFM Pump & 1.5 Gallon Chamber | 4 CFM Pump & 1.5 Gallon Chamber | 5 CFM Pump & 1.5 Gallon Chamber | 3 CFM Pump & 2 Gallon Chamber | 4 CFM Pump & 2 Gallon Chamber | 5 CFM Pump & 2 Gallon Chamber | |
|---|---|---|---|---|---|---|
| Voltage | 110V | 110V | 110V | 110V | 110V | 110V |
| Pumping Rate | 3 CFM | 4 CFM | 5 CFM | 3 CFM | 4 CFM | 5 CFM |
| Ultimate Vacuum | 5PA/0.05Mbar | 5PA/0.05Mbar | 5PA/0.05Mbar | 5PA/0.05Mbar | 5PA/0.05Mbar | 5PA/0.05Mbar |
| Rotating Speed | 1720 RPM | 1720 RPM | 1720 RPM | 1720 RPM | 1720 RPM | 1720 RPM |
| Power (HP) | 1/4 | 1/3 | 1/3 | 1/4 | 1/3 | 1/3 |
| Oil Capacity (ml) | 220ml | 225ml | 250ml | 220ml | 225ml | 250ml |
| Pump Size | 10.8x4.52x9.44in / 27.5x11.5x24cm | 10.8x4.52x9.44in / 27.5x11.5x24cm | 10.8x4.52x9.44in / 27.5x11.5x24cm | 10.8x4.52x9.44in / 27.5x11.5x24cm | 10.8x4.52x9.44in / 27.5x11.5x24cm | 10.8x4.52x9.44in / 27.5x11.5x24cm |
| Chamber Size | 9.84x5.9in / 25x15cm | 9.84x5.9in / 25x15cm | 9.84x5.9in / 25x15cm | 9.84x7.87in / 25x20cm | 9.84x7.87in / 25x20cm | 9.84x7.87in / 25x20cm |
| Package Weight | 8.42kg | 8.42kg | 8.42kg | 8.8kg | 8.8kg | 8.8kg |
| Maximum Operating Temperature | 160ºF / 71℃ | 160ºF / 71℃ | 160ºF / 71℃ | 160ºF / 71℃ | 160ºF / 71℃ | 160ºF / 71℃ |
